Flexible Packaging Materials Explained: PET, PE, PA, AL and VMPET

A relatively stable dry product may work with PET/PE. Coffee, powders and other oxygen- or moisture-sensitive products may require PET/VMPET/PE or PET/AL/PE. Heavy, sharp or frozen products may need PA/PE or PET/PA/PE.

In other words, buyers are usually not trying to learn material abbreviations for their own sake. They are trying to answer a more practical question: Which material structure fits my product, shelf-life target and filling method? The following sections are designed to answer that question clearly.

Understand the Role of Each Layer Before Comparing Structures

Before discussing laminate combinations, it helps to understand what each material usually contributes. In most real-world packaging projects, the final structure uses these materials in combination rather than in isolation.

This quick overview is useful, but customers normally make decisions based on complete laminate structures, not isolated material names. That is why the next step is understanding how the layers work together.

Different Layers Work Together to Protect the Product

A single film rarely provides the ideal combination of printability, strength, barrier protection and sealability. Flexible packaging therefore often combines multiple layers, each with a specific function.

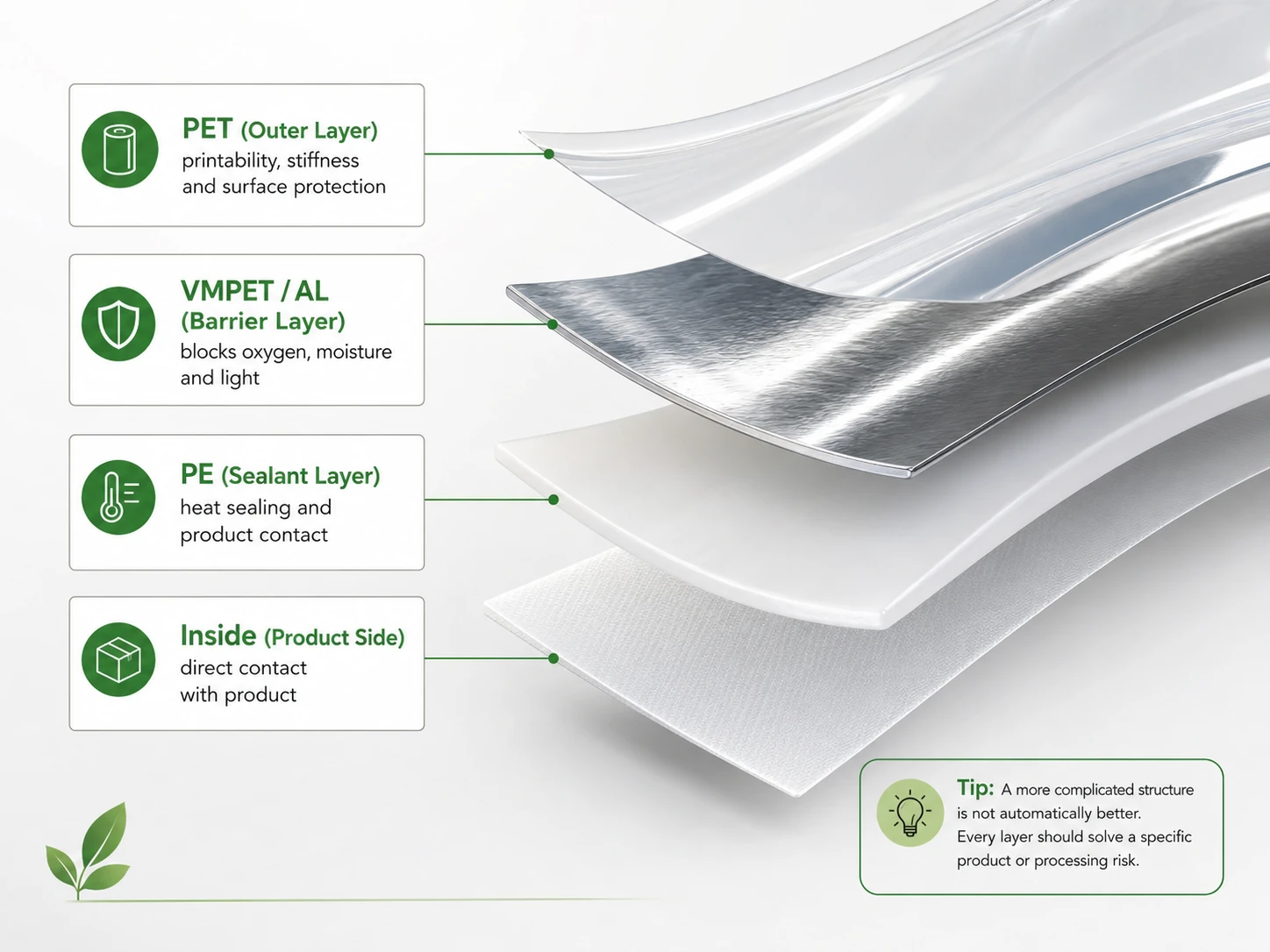

A typical structure such as PET / VMPET / PE may be understood like this:

• PET — outer print layer for graphics, stiffness and surface protection
• VMPET or AL — middle barrier layer to reduce oxygen, moisture and light transmission
• PE — inner seal layer for leak resistance and product contact

Tip: A more complicated structure is not automatically better. Every layer should solve a specific product, shelf-life or processing risk.

The pouch format also affects performance. For example, a flat-bottom pouch and a stand-up pouch may use similar laminates, but their gusset structure, filled-pack stability and sealing stress can be quite different.

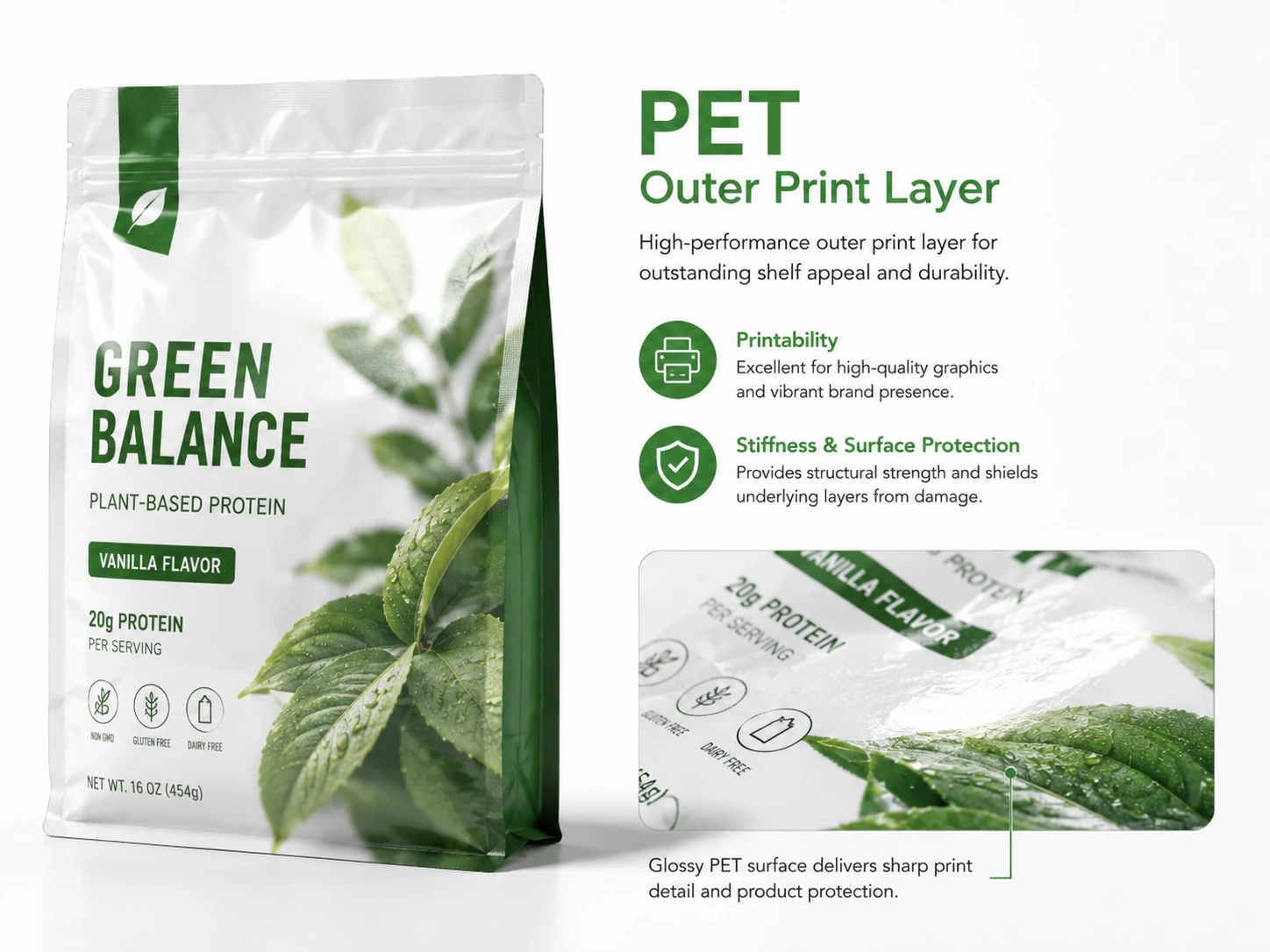

PET — The Outer Print Layer

PET is widely used as the outer layer of laminated flexible packaging because it provides a stable surface for printing and helps the finished pouch retain a clean, professional appearance.

It commonly supports high-quality graphics, good dimensional stability and resistance to scuffing during conversion and handling. PET is frequently used on printed stand-up pouches, flat-bottom bags and various custom retail formats.

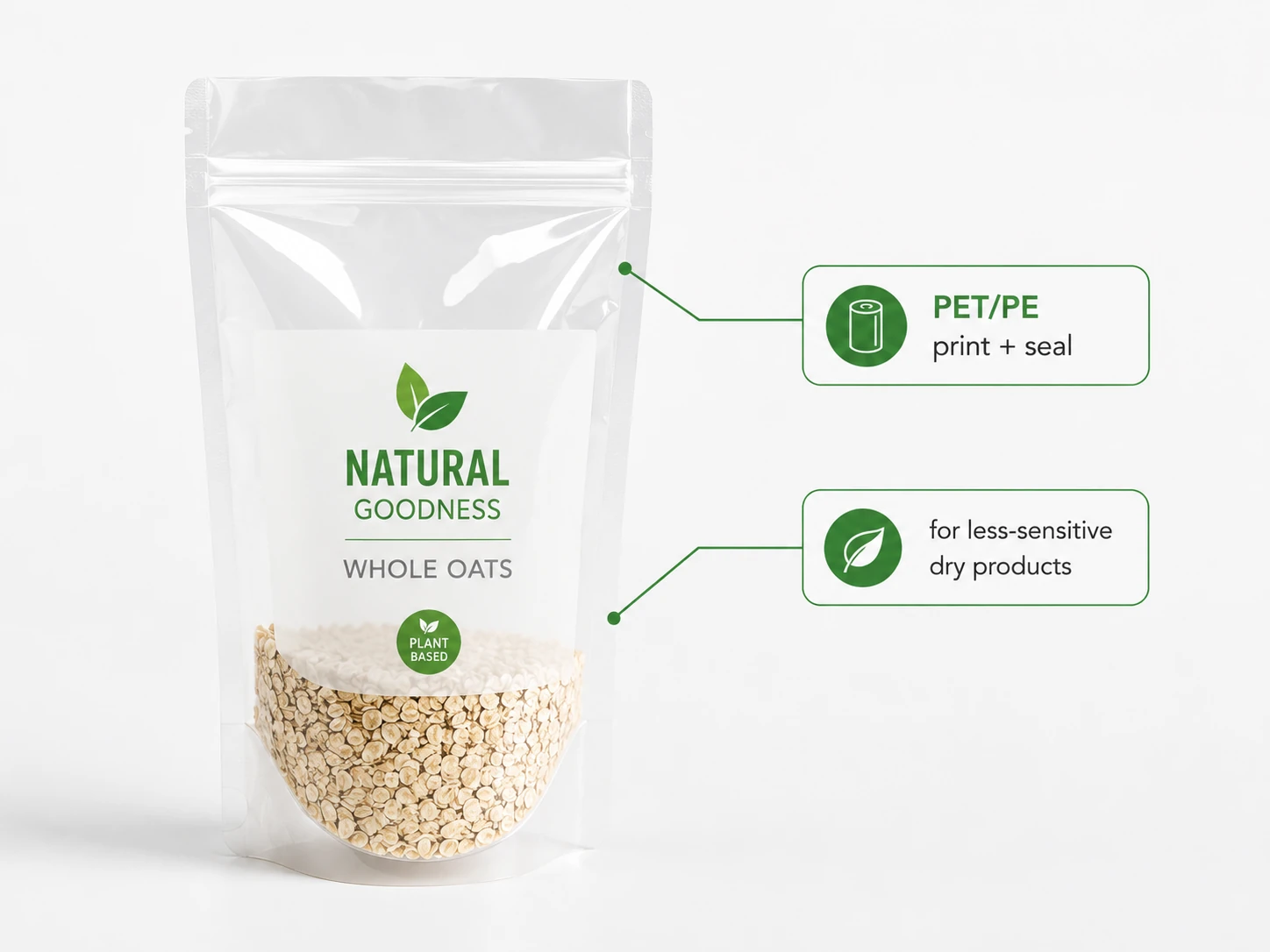

When is PET/PE enough?
It may be a practical starting point for less-sensitive dry products, shorter distribution cycles and packages that do not require demanding oxygen or light barrier performance.

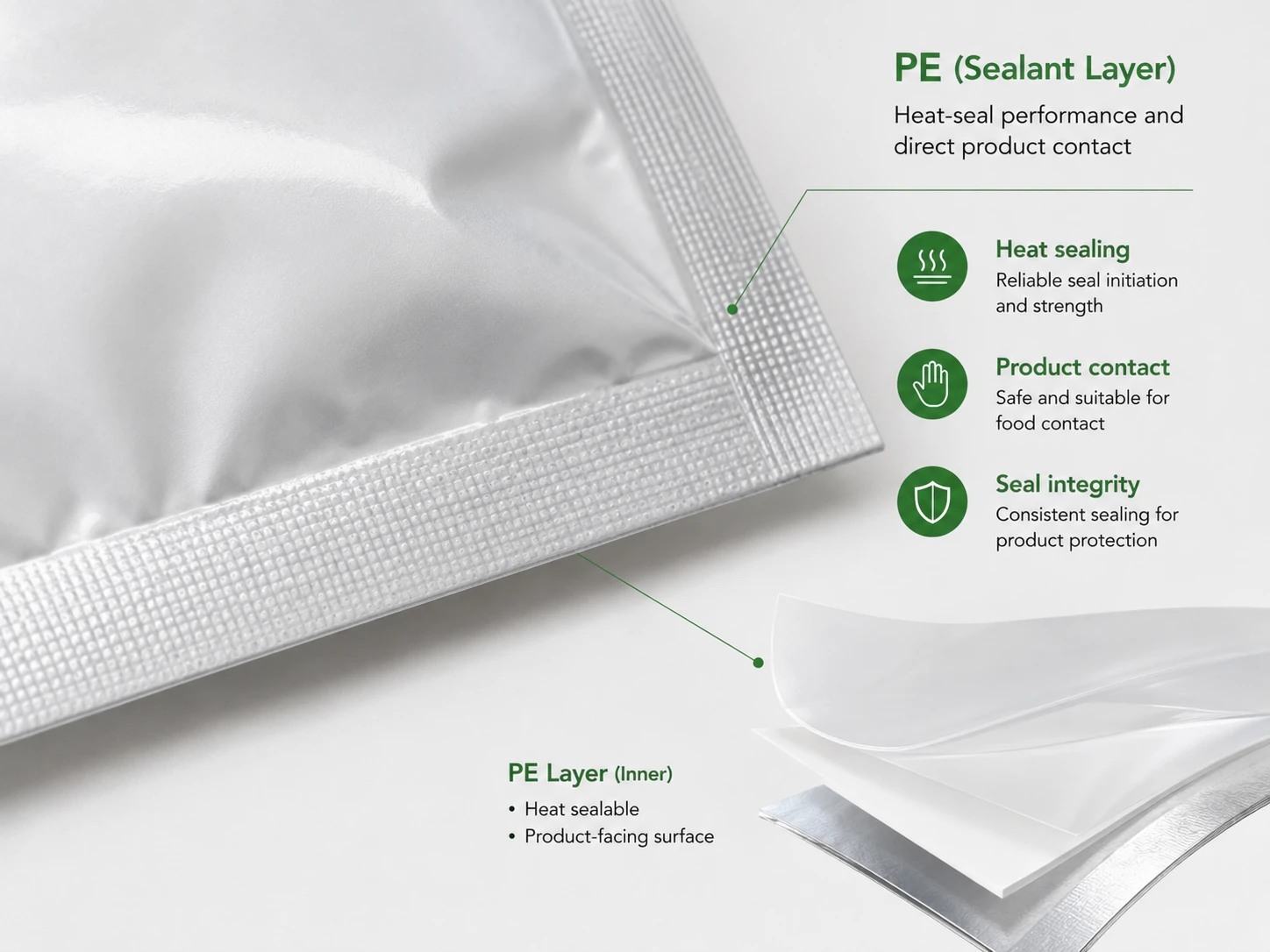

PE — The Heat-Seal and Contact Layer

PE is commonly placed on the inside of a flexible package because it provides heat sealing, flexibility and a suitable product-contact surface. It is also a broad material family rather than one single film type.

The exact PE grade can affect seal-initiation temperature, hot tack, seal strength and packaging-machine performance. This is especially important for automatic applications such as VFFS or HFFS packaging.

Important: A quotation that only says “PE” does not explain the exact sealant grade, seal temperature window, contaminated-seal performance or hot-tack behavior.

For automatic filling projects, it is helpful to review film behavior together with the converting method. See the guide to custom printed rollstock film for related production considerations.

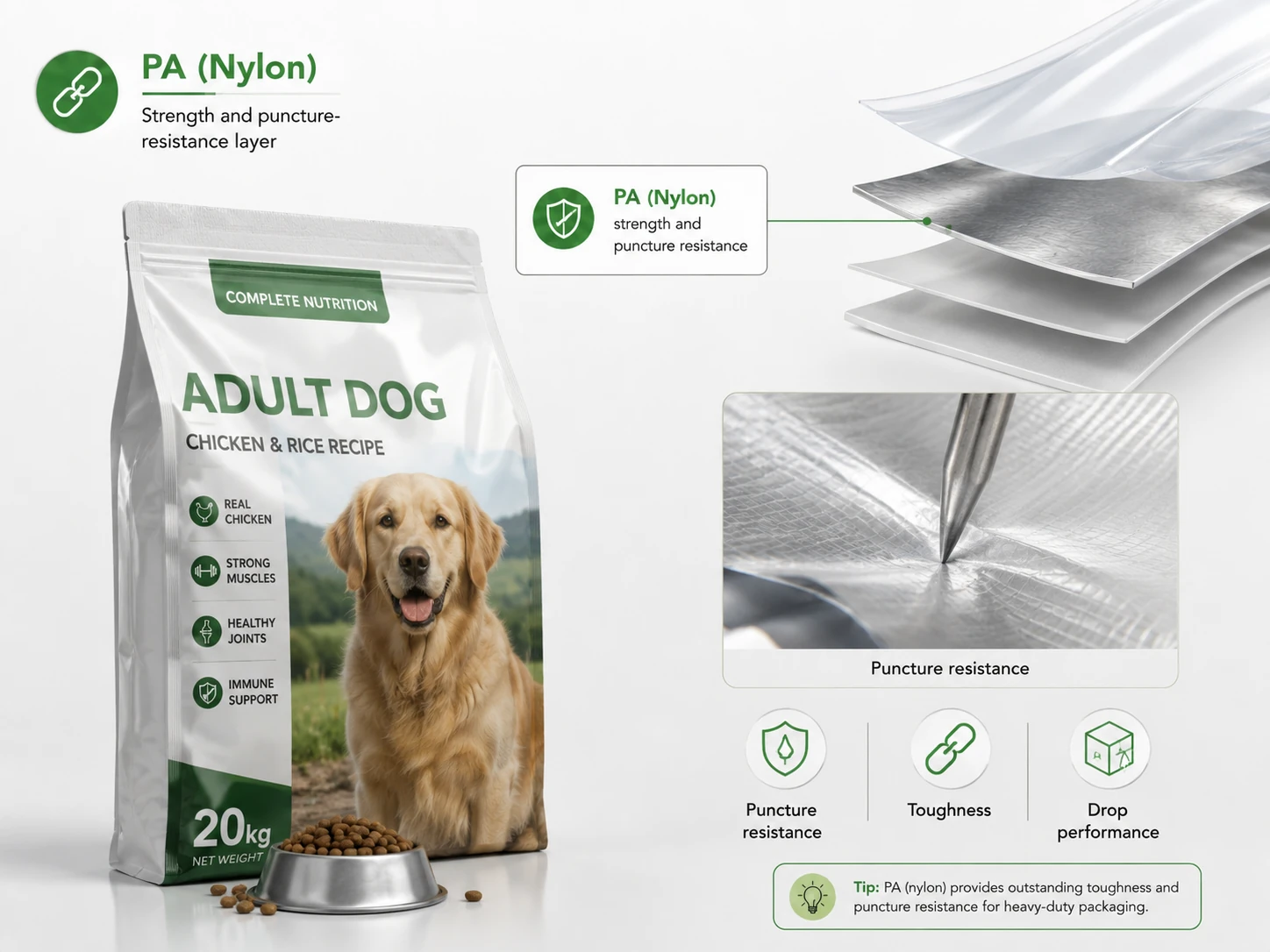

PA — The Strength and Puncture Layer

PA, also called nylon, is commonly added when a pouch needs improved toughness, puncture resistance and drop performance. It can be useful for heavy products, sharp-edged products, frozen foods, vacuum packaging and some liquid or refill applications.

PA should not be added by default. It is most valuable when the product or shipping conditions create a measurable mechanical risk that a simpler structure may not handle well.

Professional rule of thumb: Add PA when the product shape, weight, temperature or transport conditions justify additional toughness—not simply because a thicker or more complicated pouch “sounds better.”

Once the basic roles of PET, PE and PA are clear, the next question is usually about barrier. That is where customers most often compare AL and VMPET.

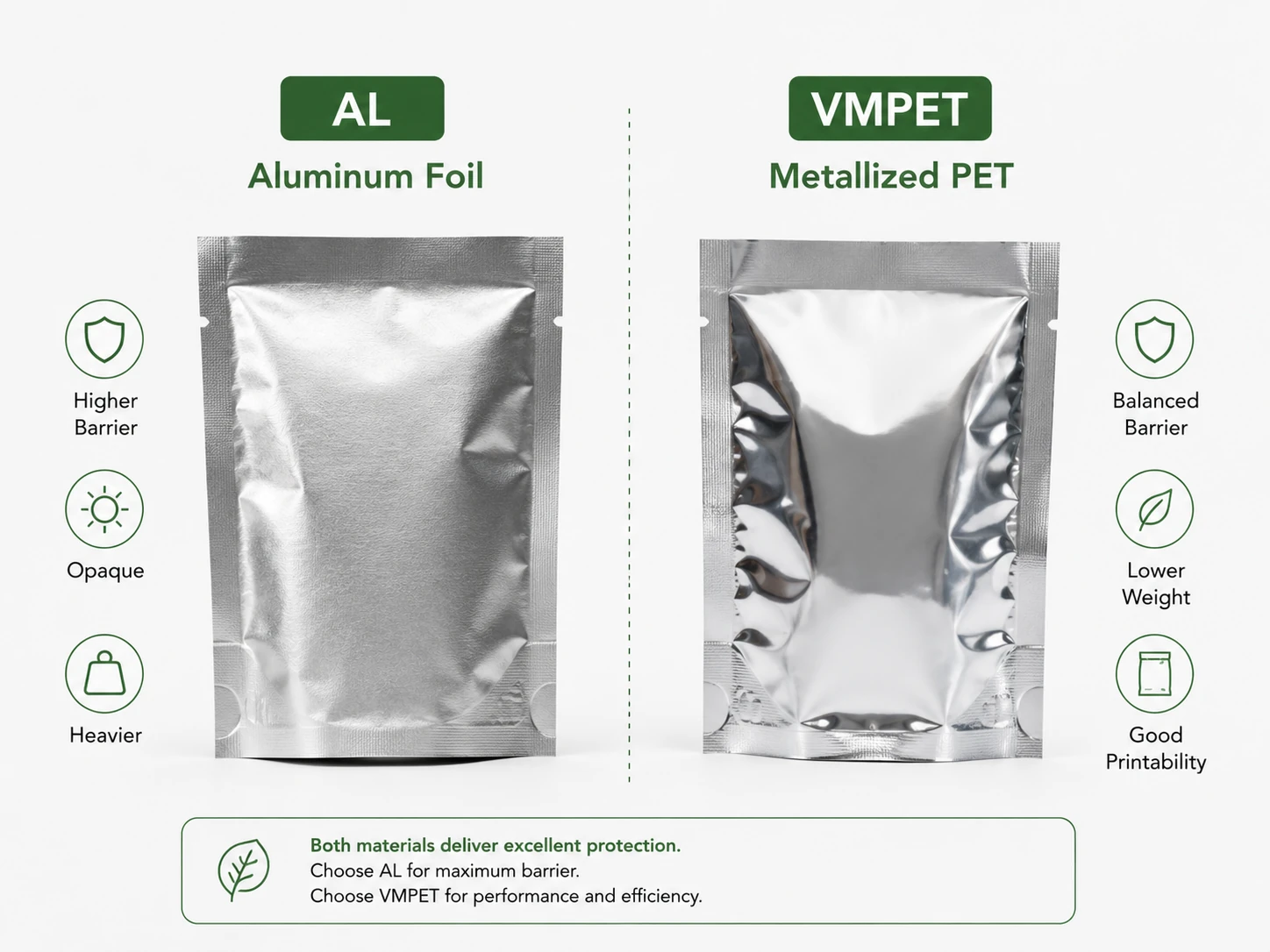

Do Not Treat AL and VMPET as the Same Material

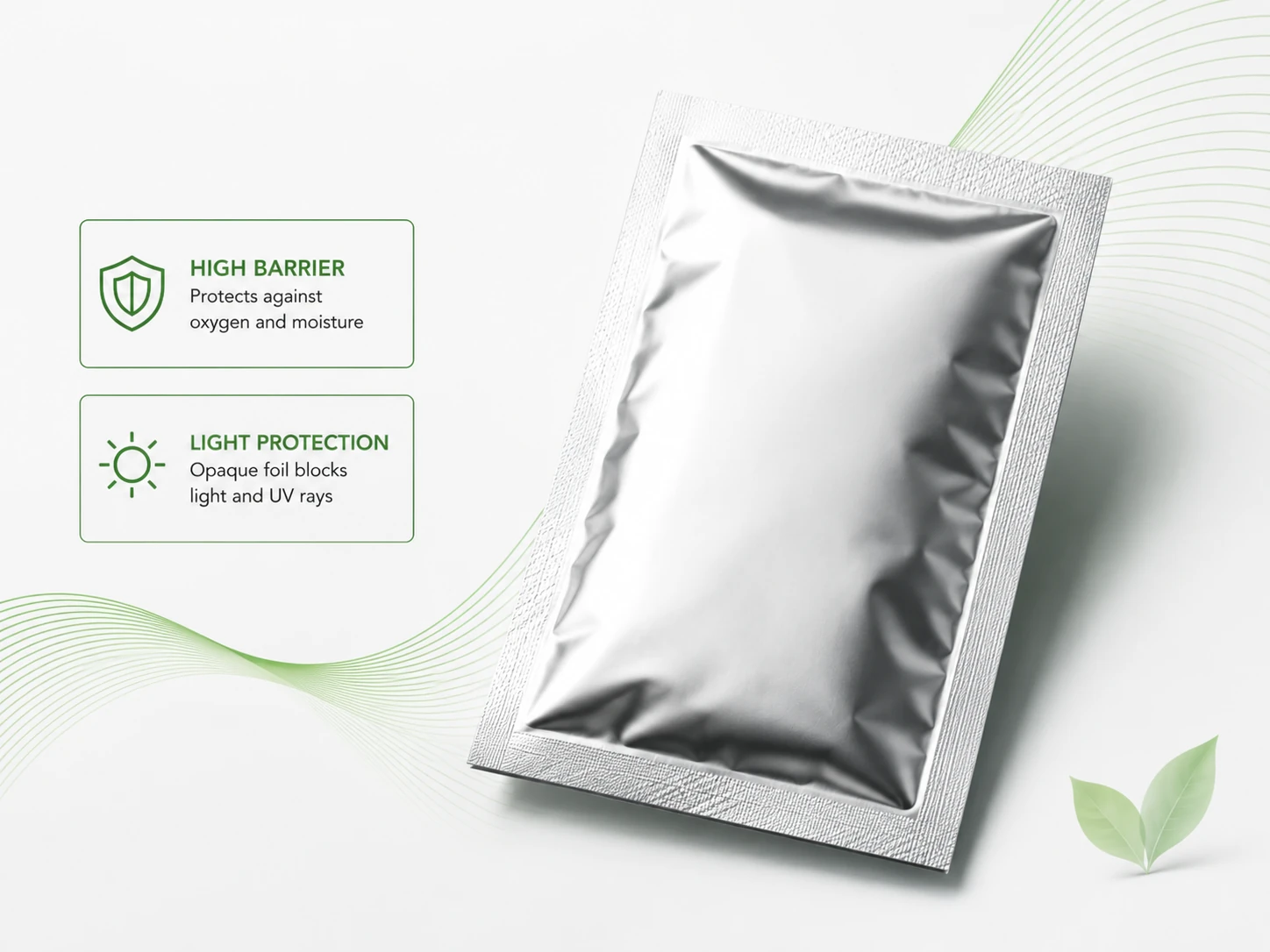

AL means a real aluminum foil layer laminated between plastic films. When intact and correctly converted, it can provide very strong protection against oxygen, moisture, light and aroma loss.

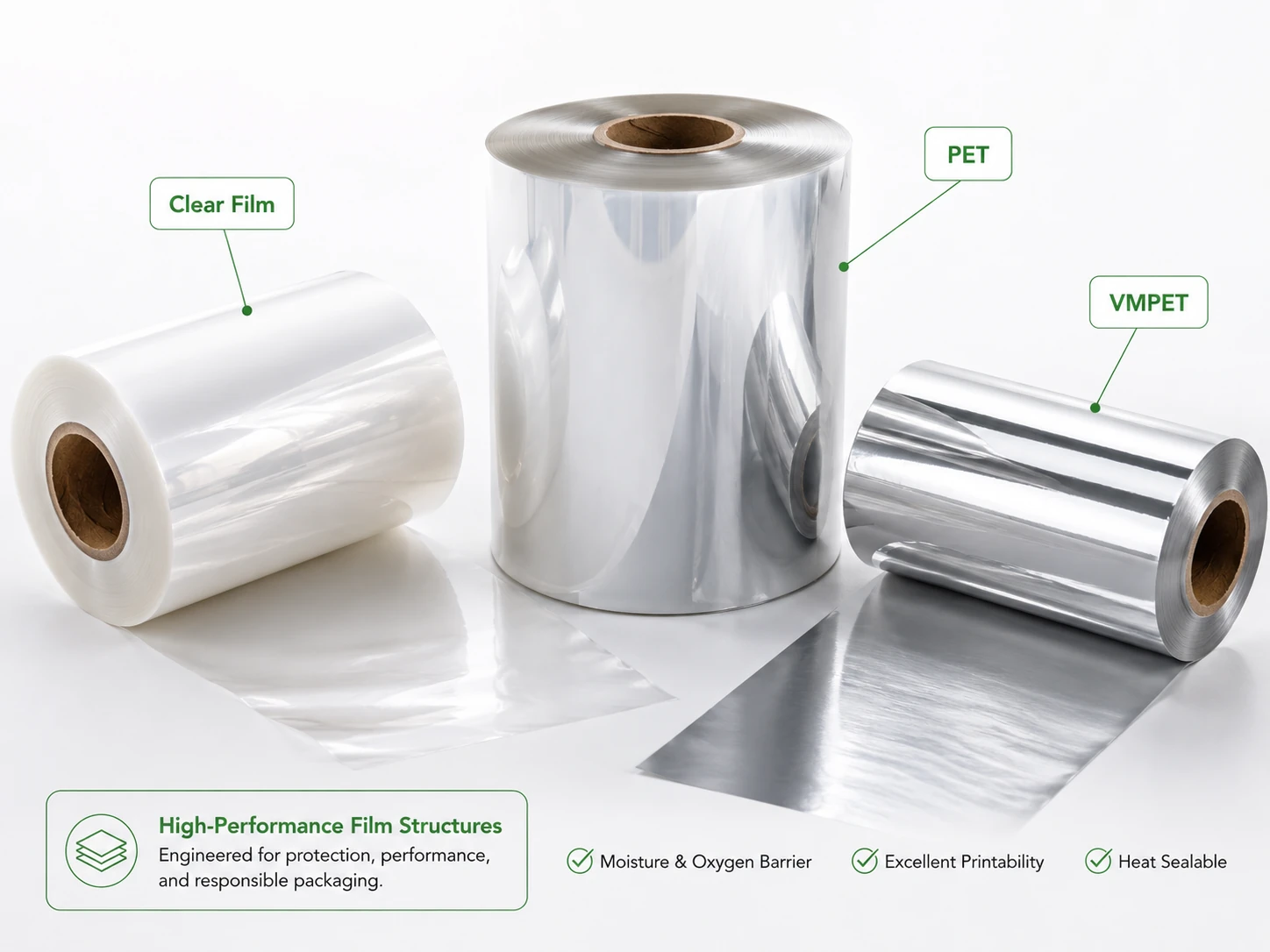

VMPET is PET film coated with a very thin aluminum layer in a vacuum metallization process. It usually offers better barrier than clear PET while remaining lighter and often more economical than solid foil.

Important: VMPET is not aluminum foil. A PET/VMPET/PE structure should not automatically be assumed to provide the same barrier as PET/AL/PE.

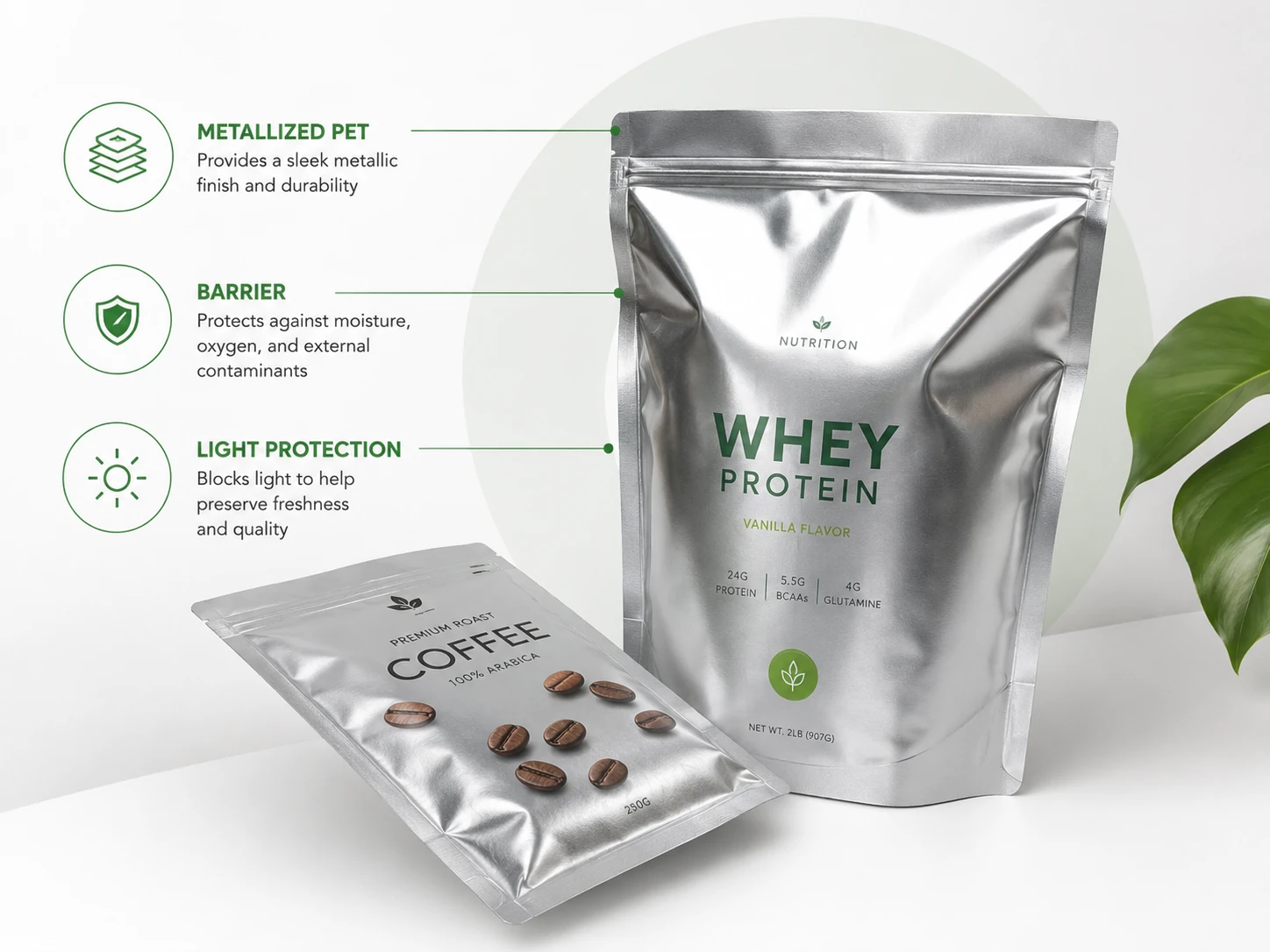

For many dry food and powder applications, VMPET can provide the right balance between barrier and cost. For highly sensitive products or longer shelf-life requirements, aluminum foil may be more appropriate. What matters is matching the actual barrier need to the product.

For general materials background, ASTM and other testing references are useful when evaluating barrier claims, including ASTM D3985 for oxygen transmission and ASTM F1249 for water-vapor transmission.

Compare Common Structures by Their Function and Typical Use

Below are several common laminate structures used in flexible packaging. These are practical starting points, not fixed rules. Real product selection should still consider fill weight, shelf life, machine conditions and product sensitivity.

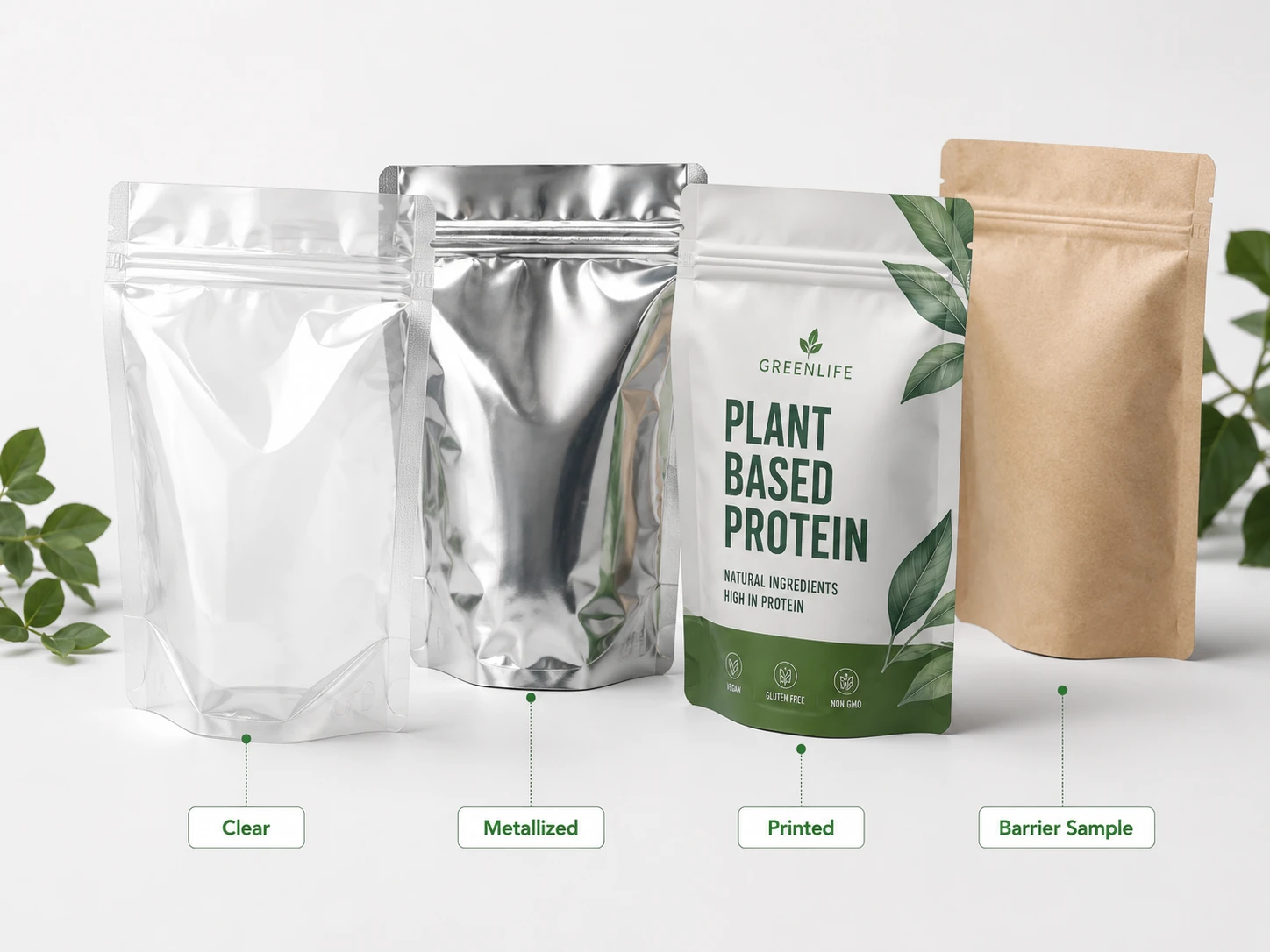

Seeing real converted pouches is useful because the same material abbreviation can produce a different appearance and feel depending on film thickness, surface finish, printing method and pouch construction.

Use Product Risk to Narrow Down the Starting Structure

A Simple Seven-Step Decision Process

Many buyers compare films by cost or thickness first, but a more reliable selection process starts with product risk and processing requirements. The following decision path helps avoid unnecessary trial and error.

Thickness Alone Does Not Define Packaging Performance

Two pouches with the same total thickness can perform very differently. What matters is how the structure is built and what each layer contributes.

• material combination;
• individual layer thickness;
• resin grade;
• adhesive system;
• barrier coating or foil layer;
• lamination quality;
• sealant performance;
• pouch construction and handling stress.

This distinction is important when comparing quotations. A lower-cost pouch may use a similar total thickness but a weaker barrier or less suitable sealant. A more expensive structure may be justified only when the product risk truly requires it.

Confirm the Structure with Data and Application Trials

Material abbreviations do not replace testing. Good packaging decisions are supported by performance data and real production trials.

For technical references, many suppliers and converters use standards such as ASTM D3985 for oxygen transmission and ASTM F1249 for water-vapor transmission.

What Information Should You Send for a Material Recommendation?

Quotations are much more useful when they are based on the actual product and process. Before requesting a recommendation, prepare the following information:

If your project involves coffee packaging, automatic filling or specialized pouch types, it can also be helpful to review related pages on rollstock film, stand-up pouches and flat-bottom pouches before confirming the structure.

Frequently Asked Questions About Flexible Packaging Materials
